x64 | File Size: 779 MB

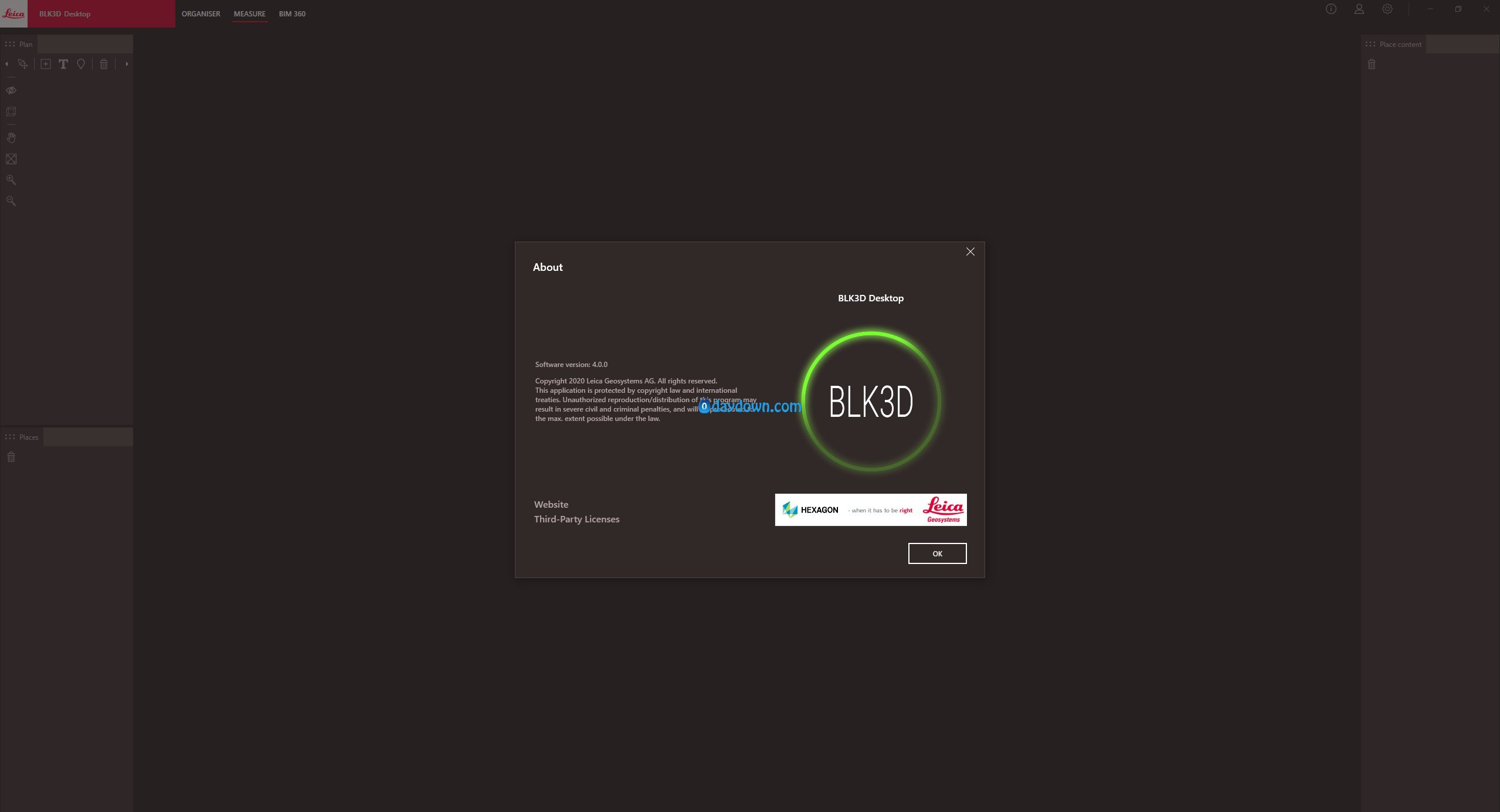

The BLK3D Desktop software is an extension of the mobile functionality which runs on Windows laptops and desktops.
You do not! In fact, the BLK3D is ready to use right out of the box without any additional subscriptions. BLK3D Mobile Basic comes pre-installed from the factory and allows users to capture and measure 3D images in Reality Capture, manage 3D images and BLK3D Projects in Organizer, and use the on-board laser distance meter to take measurements without any additional costs.
In a single-shot 3D image, the baseline is the distance between the two camera lenses. Single shot accuracy is adequate for estimation tasks like documenting storm damage or for 2D measurements at close range.
-adding the 3D Model subscription, you will have the possibility to visualize your measured points and lines in 3D, and export your measurements as DWG/DXF file for use in the CAD program of your choice.
-Similar to BLK3D Mobile with the exception that users can publish images from a desktop computer. This option is ideal for users who prefer to work with their 3D images primarily in the office. Inside of BLK3D Desktop, a simple right click on a 3D image in Organizer will allow users to generate a unique link to the photo. The links can be shared or embedded almost anywhere for use by anyone with a web browser and internet connection.
In a multi-shot 3D image, the baseline is extended by moving laterally and taking a second shot of the same object. Multi-shot accuracy is recommended for tasks like construction progress documentation where 3D measurements at longer range are required.
Export 3D images in PDF or JPG format from your PC or from the BLK3D via WiFi. Send 3D images captured by the BLK3D to your computer where they can be opened and edited with the BLK3D Desktop Software.
No desktop software? Use BLK3D Publish (desktop or mobile versions available) to create free web links to measurable image. The BLK3D Web, a free, browser based platform, allows measurement, markup and saving of 3D image files in PDF and JPG formats.
Minimum system requirements
-Windows 10 or 8.1 with 64-bit
-6 GB RAM available
-Mouse with scroll wheel for efficient zoom & point selection
