SPICE Simulation For Beginners With OrCAD PSPICE -EsteemPCB

其他教程 dsgsd 22浏览 0评论

https://www.0daydown.com/wp-content/uploads/2022/06/4570656_2c7a_8.jpg

Instructors: Aviral Mishra
5 sections • 17 lectures • 1h 56m total length
Video: MP4 1280×720 44 KHz | English + Sub
Updated 2/2022 | Size: 1.5 GB

On OrCAD Pspice, we will simulate 10 different circuits for DC-Sweep, AC-Sweep, Transient and Parametric-Sweep Analysis

On OrCAD Pspice, we will simulate 10 different circuits for DC-Sweep, AC-Sweep, Transient and Parametric-Sweep Analysis

What you’ll learn
What is SPICE Simulator and How it works?
Where do we use SPICE Simulators?
How to use Cadence OrCAD PSPICE Simulator?
What is DC-SWEEP Analysis and how to apply it on different complexity level circuits?
What is Transient analysis and how to apply it on different complexity level circuits?
What is Frequency Sweep or AC-Sweep? And how to apply it on different complexity level circuits?
What is Parametric Sweep? And how to apply it on different complexity level circuits?

Requirements
Don't need any prior knowledge or experience of SPICE simulation, everything is going to be discussed from very scratch.Make sure your PC has Cadence OrCAD Pspice.Basic Understanding of circuit design.

Description
This course is divided into #5 different sections, under each section I have discussed different complexity levels of circuits and their SPICE simulations
Section-1 In this section I have discussed “What are SPICE, How it works, and Types of simulation we can do on Cadence PSPICE?”Section-2 is all about Level-1 Circuits, their maths, and simulations.”DC-Sweep, AC-Sweep/Frequency Response, Transient analysis on different RC and LC filters”Section-3 is all about Level-2 Circuits, their maths, and simulations.”We’ll start with circuit introductions and then perform frequency responses and bode plots for gain/phase margins, Circuits we’ll discuss under this sections are Active LPF, Inverting and Non-inverting Amplifiers”

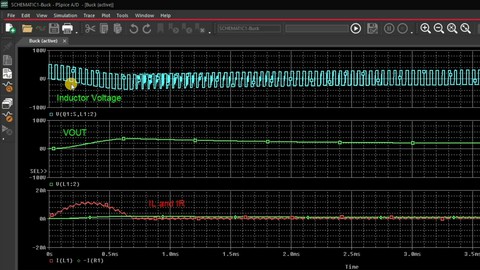

Section-4 is all about Level-3 Circuits, their maths, and simulations. “Under this section, we’ll start with Basics of Buck converters and do few derivations to do design calculations, then we’ll draw it’s schematic and perform different spice simulations like Frequency responses, Probe and understand the working, how we can make it better with a close loop buck converter, etc.
Section-5 is all about Level-4 Circuits, their maths, and simulations. “Under this section, we’ll start with Basics of Boost converters and do few derivations to do design calculations, then we’ll draw it’s schematic and perform different spice simulations like Frequency responses, Probe and understand the working, how we can make it better with a close loop buck converter, etc.
Who this course is for:People who wanted to learn SPICE SimulationWanted to learn Cadence OrCAD PSPICEPeople who wanted to learn how to simulate different circuits for DC-Sweep AnalysisPeople who wanted to learn how to simulate different circuits for AC-Sweep / Frequency Response AnalysisPeople who wanted to learn how to simulate different circuits for Transient AnalysisPeople who wanted to learn how to simulate different circuits for Temperature Sweep AnalysisPeople who wanted to learn how to simulate different circuits for Monte-Carlo
